          NVIDIA Jetson 開發系統

          • Y-C6-DEV開發系統
          • Y-C6-DEV開發系統
          • Y-C6-DEV開發系統
          Y-C6-DEV開發系統Y-C6-DEV開發系統Y-C6-DEV開發系統

          Y-C6-DEV開發系統

          適配核心:Orin NX/Orin Nano/XAVIER NX/TX2 NX/NANO模組
          支持原生系統
          板卡尺寸:120mm×80mm×35 mm
          電源適配器:DC +12V 5A
          工作溫度: -25~+65℃


          NVIDIA Jetson Orin Nano/Orin NX

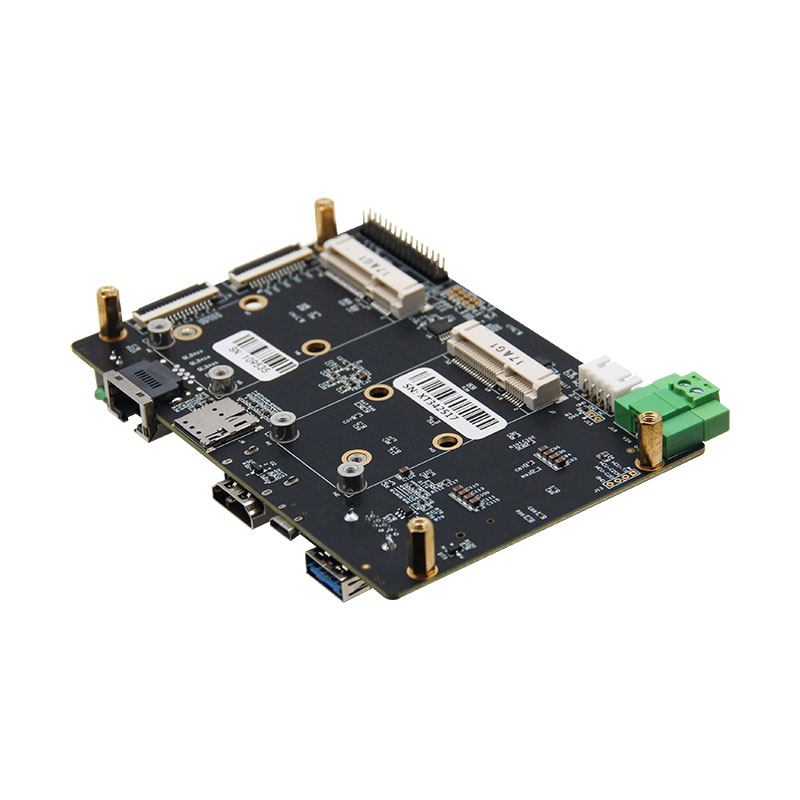

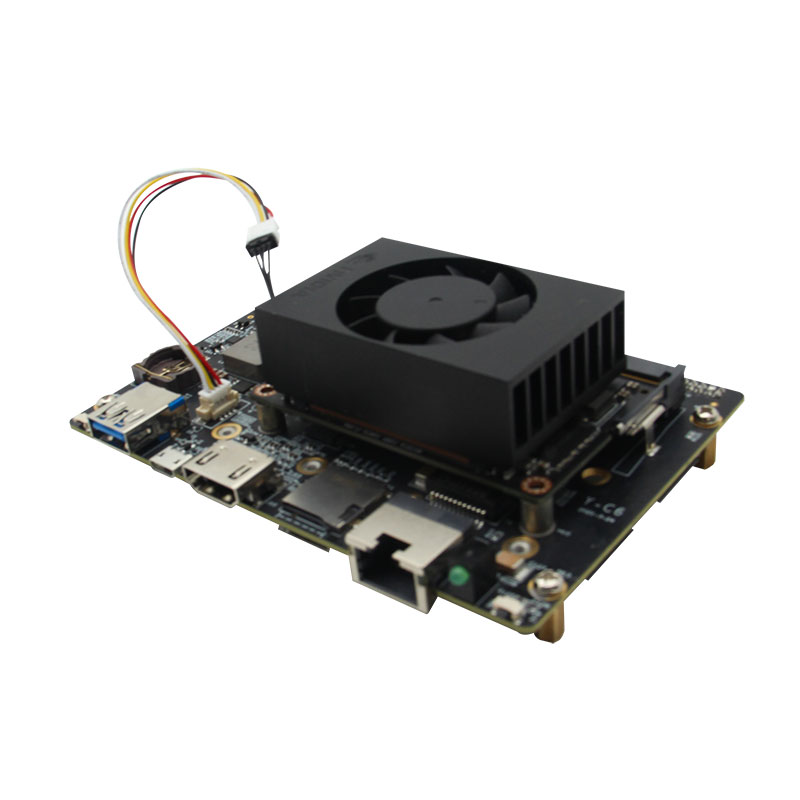

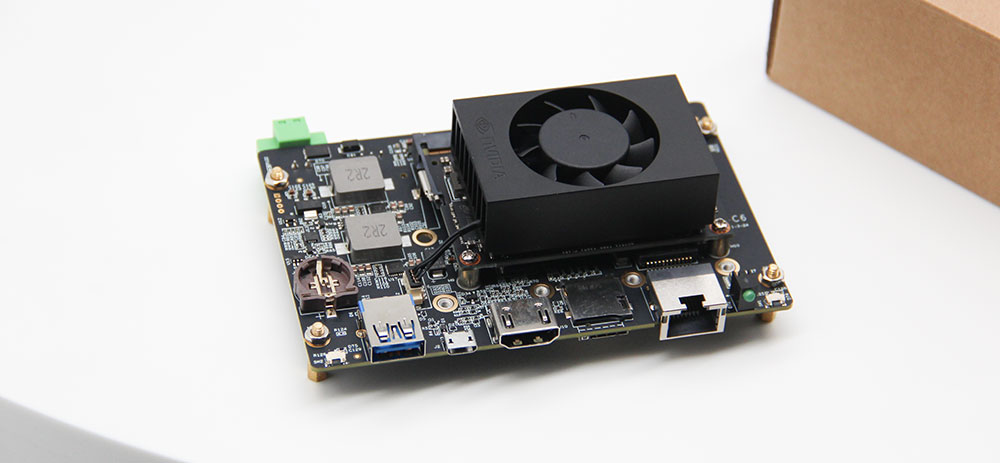

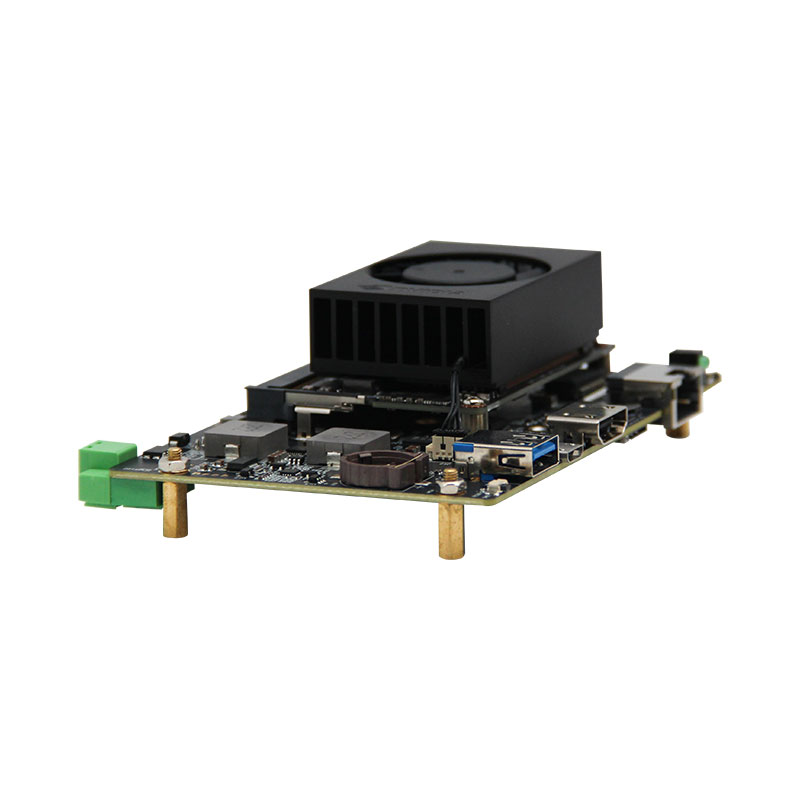

          Y-C6-DEV 開發套件
          * 適配模組:
          NVIDIA Jetson Orin NX/Orin Nano/Xavier NX/TX2 NX/Nano Module

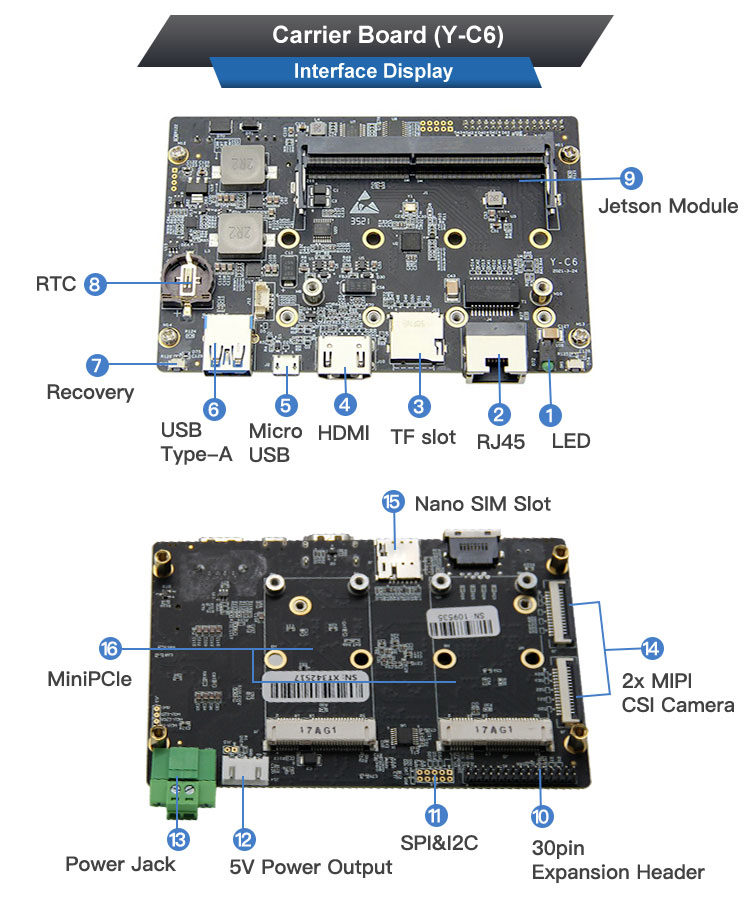

          * 通用接口:
          1x USB 3.0, 1x Micro USB, 1x HDMI and 1x Gigabit Ethernet(10/100/1000 BASE-T) RJ45

          * 外設接口:
          1x Micro SD, 1x FAN, 1x Nano SIM, 2x MiniPCIe Connector, 2x 2 Lane MIPI Camera FPC Connectors, 1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C, 1x 20-pin Multi-function

          * Input Power: AC to DC /220V to +12V 5A
          Product Name
          Y-C6-DEV
          Type
          開發套件
          Jetson Module Supported
          NVIDIA Jetson Orin Nano/Orin NX/Xavier NX/TX2 NX/Nano
          Networking
          1x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
          USB
          1x USB 3.0
          1x Micro USB
          Camera
          2x 2 Lane MIPI camera FPC connector
          Display
          1x HDMI
          FAN
          1x FAN
          Other I/O
          1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C
          Mechanical
          120mm x 80mm x 35mm
          Weight
          158g
          Operating Temperature
          -20℃~+65℃
          Module
          Jetson Orin NX 16GB
          Jetson Orin NX 8GB
          Jetson Orin Nano 8GB
          Jetson Orin Nano 4GB
          AI Perf
          100 TOPS
          70 TOPS
          40 TOPS
          20 TOPS
          GPU
          1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
          512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
          CPU
          8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
          2MB L2 + 4MB L3
          6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
          1.5MB L2 + 4MB L3
          Memory
          16GB 128-bit LPDDR5
          102.4GB/s
          8GB 128-bit LPDDR5
          102.4GB/s
          8GB 128-bit LPDDR5
          68 GB/s
          4GB 64-bit LPDDR5
          34 GB/s
          Storage
          -
          (Supports external NVMe)
          Video Encode
          1x 4K60 (H.265)
          3x 4K30 (H.265)
          6x 1080p60 (H.265)
          12x 1080p30 (H.265)
          1080p30 supported by 1-2 CPU cores
          Video Decode
          1x 8K30 (H.265)
          2x 4K60 (H.265)
          4x 4K30 (H.265)
          9x 1080p60 (H.265)
          18x 1080p30 (H.265)
          1x 4K60 (H.265)
          2x 4K30 (H.265)
          5x 1080p60 (H.265)
          11x 1080p30 (H.265)
          CSI Camera
          Up to 4 cameras (8 via virtual channels***)
          8 lanes MIPI CSI-2
          D-PHY 2.1 (up to 20Gbps)
          Up to 4 cameras (8 via virtual channels***)
          8 lanes MIPI CSI-2
          D-PHY 2.1 (up to 20Gbps)
          Power
          10W - 25W
          10W - 20W
          7W - 15W
          7W - 10W
          I/O Support
          Xavier NX
          Orin NX
          HDMI
          Support
          Support
          USB 3.0
          Support
          Support
          Micro USB
          Use to Flash System
          Micro SD
          Support
          Nonsupport
          RST
          Support
          Support
          GPIO
          Support
          Support
          I2C
          Support
          Support
          CAN
          Support
          Support
          SPI
          Support
          Support
          MiniPCIe
          Support
          Support
          USB 2.0
          Support
          Support
          UART 0
          Support
          Support
          UART 1
          Support
          Support
          UART 2(DeBug)
          Support
          Support
          MIPI
          Support
          -

          Note

          *當Y-C6安裝Jetson Nano模塊時,CAN不可用,1 miniPCIe連接器不可用。
