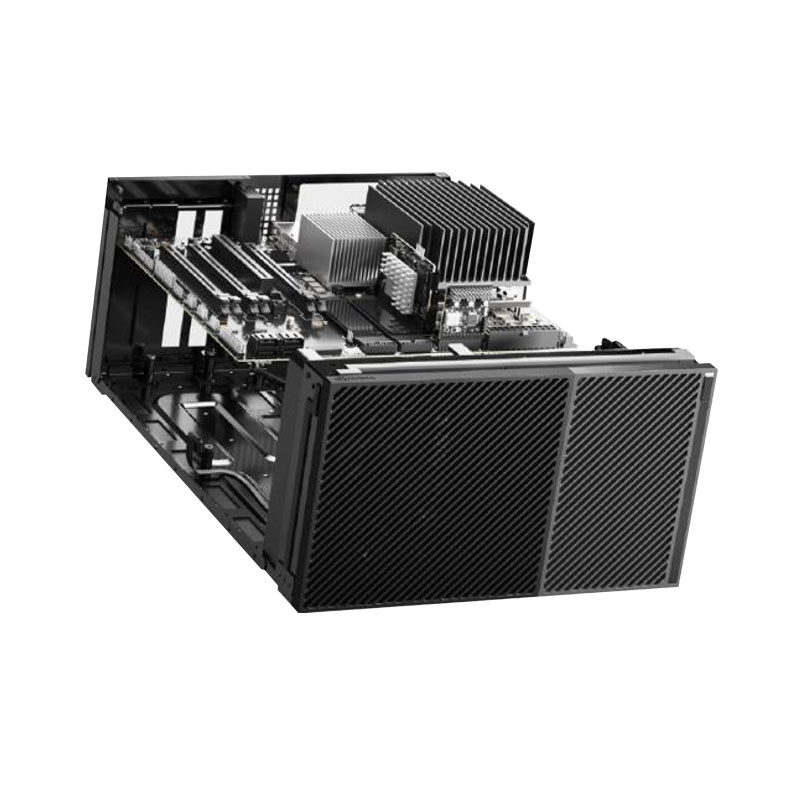

NVIDIA IGX Orin Developer Kit
* AI Performance
|
AI Performance
|
Up to 1705 TOPs with optional RTX 6000 Ada GPU (Sparse)
|
|
SOM (System on Module)
|
GPU: 2,048-core NVIDIA Ampere architecture with 64 Tensor Cores
CPU: 12-core Arm® Cortex®-A78AE v8.2 |
|
NVIDIA ConnectX-7
|
NVIDIA ConnectX-7
2x 100GbE 32-lane Gen 5 PCIe switch (x8 upstream, x16 Downstream, x8 Downstream) |
|
Safety MCU (sMCU)
|
Infineon Aurix TC397
|
|
NVIDIA BMC (Baseboard Management Controller) Module
|
Aspeed AST2600
Microchip ERoT |
|
GPU Max Frequency
|
1.185GHz
|
|
CPU Max Frequency
|
1.971GHz
|
|
DL Accelerator
|
2x NVDLA 2.0 Engines
|
|
DLA Max Frequency
|
1.4GHz
|
|
Vision Accelerator
|
1x PVA v2
|
|
Memory
|
64GB 256-bit LPDDR5
204.8GB/s |
|
Storage
|
500GByte NVMe (PCIe Gen4)
(4x SATA 6Gbps expansion ports) |
|

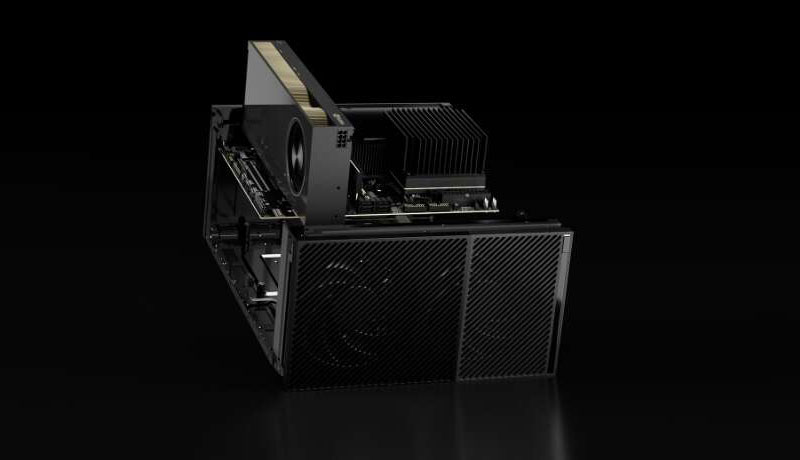

Optional Discrete GPU Card
|
NVIDIA RTX A6000
NVIDIA RTX 6000 Ada |
|
Wireless
|
802.11 a/b/g/n/ac BT 5.0
|
|
Video Encode
|
2x 4K60 (H.265)
4x 4K30 (H.265) 8x 1,080p60 (H.265) 16x 1,080p30 (H.265) |
|
Video Decode
|
1x 8K30 (H.265)
3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1,080p60 (H.265) 22x 1,080p30 (H.265) |
|
HDMI-IN
|
HDMI 2.0b input (up to 4Kp60)
|
|
PCIe
|
2x PCIe Gen5 expansion slots (from ConnectX-7 PCIe switch)
x8 lanes within x16 physical connector x16 lanes within x16 physical connector |
|
USB
|
1x USB 3.2 Gen2 Type-C connector
4x USB 3.2 Gen2 Type-A connectors |
|
Ethernet
|
2x RJ45 (up to 1 GbE)
2x QSFP28 ports (up to 100GbE per port) |
|
Display
|
One DisplayPort 1.4a output
|
|
Audio (AU)
|
Two 3.5mm AUX jack (MIC, line-out)
|
|
Power
|
100 ~ 240 VAC
100 VAC: 8.5 A 240 VAC: 3.5 A |
|
Mechanical
|
262.7 x 382 x 151.2 mm
6,700 grams |
