Leadtek Station W830

產品規格

---

處理器

處理器	Single Socket R4 (LGA 2066) supports Intel® Xeon® W-2200 processor Intel® Xeon® W-2100 processor

系統內存

內存容量	8 DIMM slots Up to 512GB reg. ECC LRDIMM,up to DDR4-2666MHz
內存種類	2666/2400/2133MHz ECC DDR4 SDRAM

內建裝置

芯片組	Intel® C422 chipset
SATA	SATA3 (6Gbps) via Intel C422 controller, RAID 0, 1, 5, 10 support
網絡	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108

輸入 / 輸出

SATA	6 SATA3 (6Gbps) ports from Intel® C422
LAN	2 RJ45 Ethernet LAN ports
USB	6 USB 3.0 ports (4 rear + 2 headers) 6 USB 2.0 ports (2 rear + 4 headers) 2 USB 3.1 (2 Type A)
Audio	7.1 HD Jacks

外觀形態

Mid-Tower

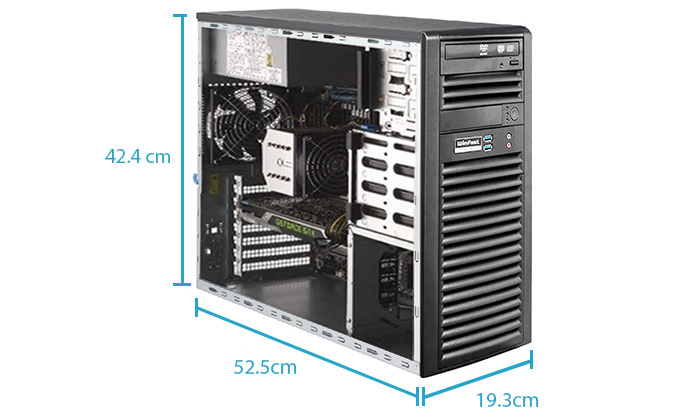

尺寸與重量

高度	16.7" (424mm)
寬度	7.6" (193mm)
深度	20.68" (525.3mm)
重量	Gross Weight: 35.5 lbs (16.1 kg)

磁盤槽 / 存儲

4 Fixed 3.5" and 4 Fixed 2.5” drive bays 2 M.2 (M-key, 2260/2280/22110) 1 U.2 for optional expanded storages

擴充插槽

PCI-Express

3 PCI-E 3.0 x16 slots (8/16/16, 48 lanes) 1 PCI-E 3.0 x4 slot

系統散熱

風扇

1x 12cm rear exhaust fan 1x 12cm front cooling fan

電源供應器

900W AC multi output power supply 100-240 V, 50-60 Hz, 10-6 Amp

支持操作系統

Windows 10 RHEL 7.4 Ubuntu 18.04

操作環境

RoHS	RoHS Compliant
環境規格	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
