產(chǎn)品特性
* 適配模組:NVIDIA Jetson Orin NX/Orin Nano Module

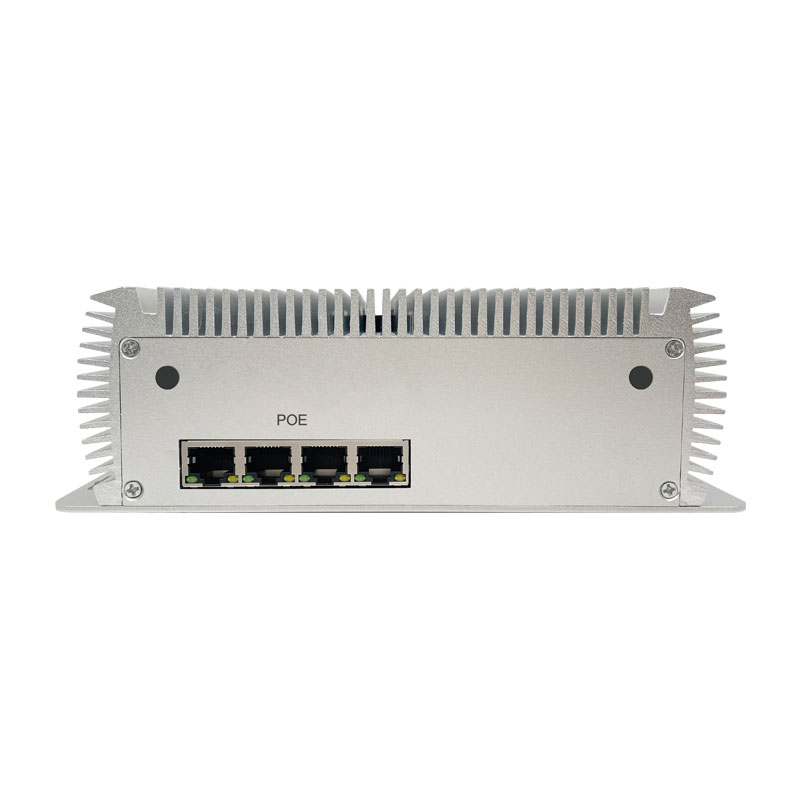

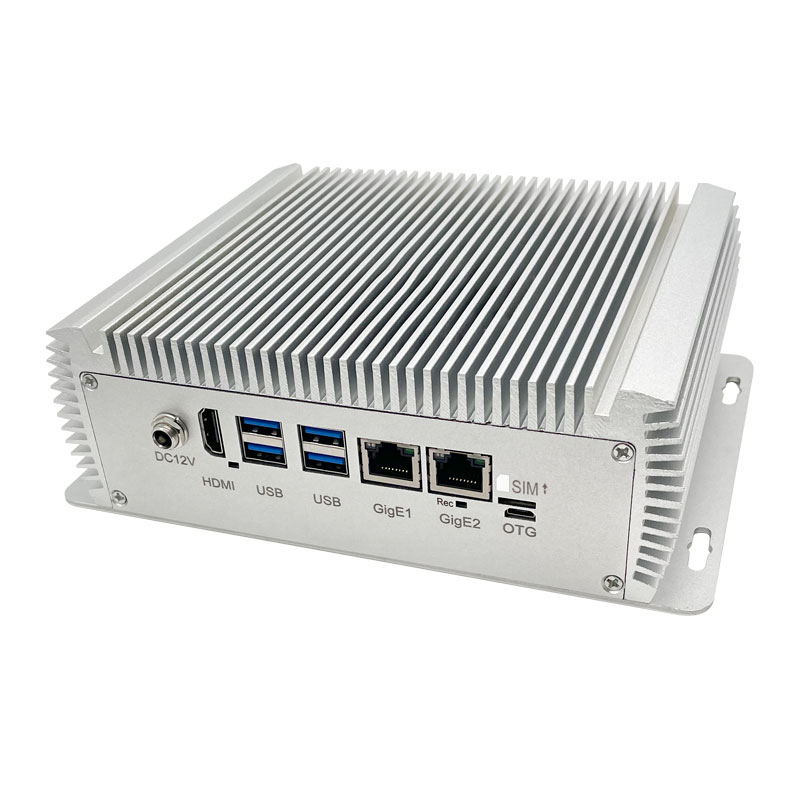

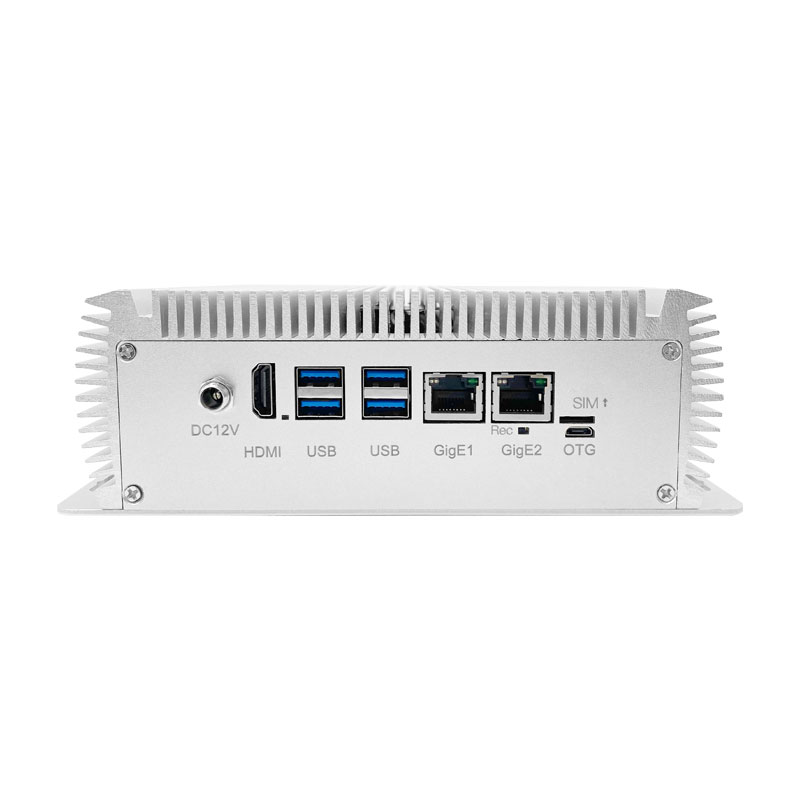

* 通用接口:4x USB 3.0，6x RJ45 PoE，1x HDMI，1x SIM Nano
* Other I/O:1x fan,2x M.2 2242 M key,1x M. 2 3050 B key slot (for 4G/5G module),2x 4 Lane MIPI camera interface FPC connector,2x 20 pin 2.0mm spacing multi-function extension pin connector (including 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 2x UART)
* 尺寸：202mm x 206mm x 64.5mm
* 重量：2000g。
|
Module |
Orin NX 16GB |
Orin NX 8GB |
Orin Nano 8GB |
Orin Nano 4GB |
|
AI Performance |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
||
| CPU |
8-core Arm® Cortex®- A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
||
|
Memory |
16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
(Supports external NVMe) |
|||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
Networking |
1x GbE |
|||
|
Power |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
