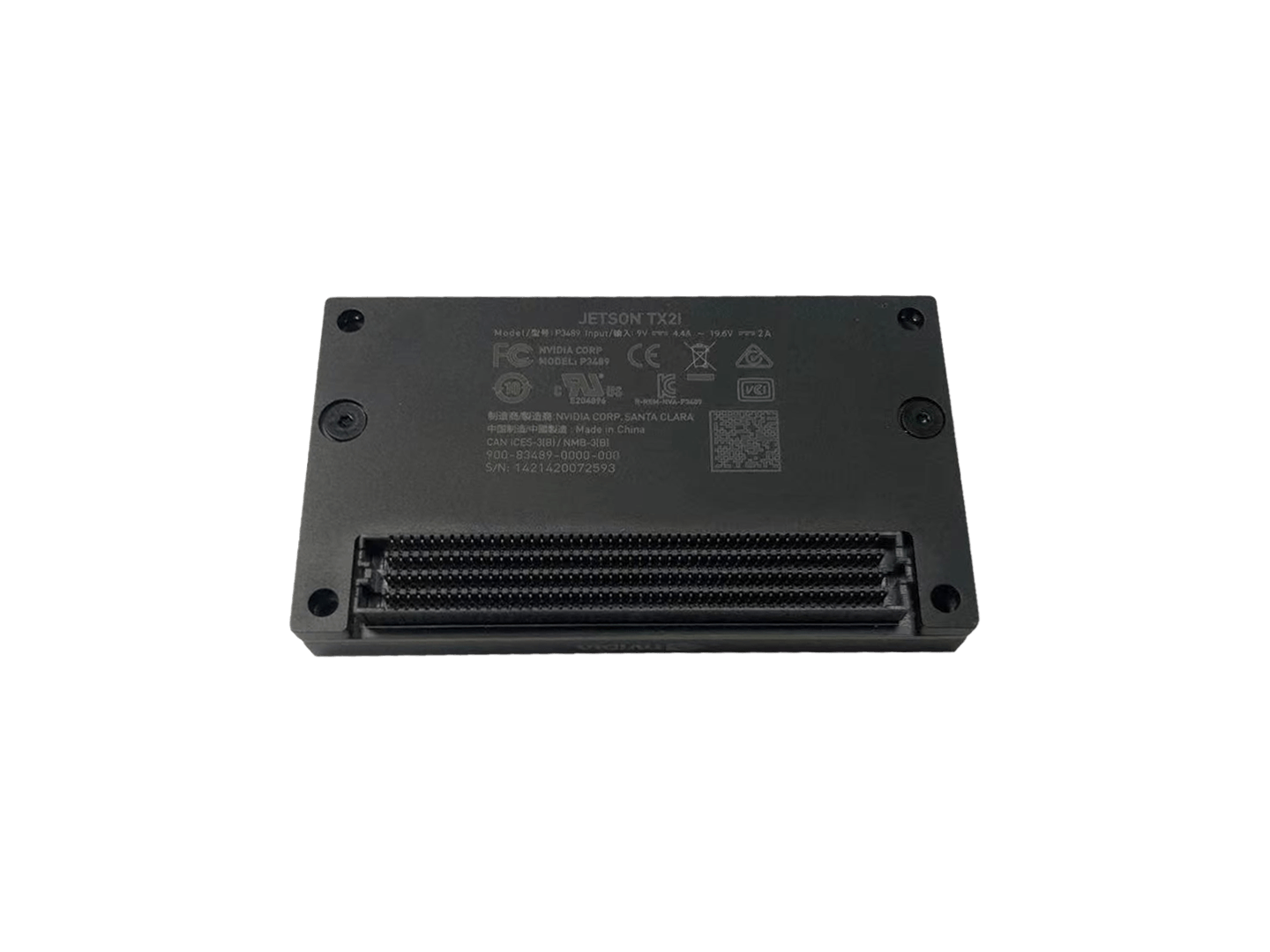

Jetson TX2i Module

TX2 NX

TX2 4G

TX2

TX2i

AI Performance

1.33 TFLOPS

1.26 TFLOPS

GPU

256-core NVIDIA Pascal^? GPU

CPU

Dual-core Denver 2 64-bit CPU and quad-core Arm^® Cortex^®-A57 MPCore processor

Memory

4 GB 128-bit LPDDR4
51.2GB/s

8 GB 128-bit LPDDR4
59.7GB/s

8 GB 128-bit LPDDR4
(ECC Support)
51.2GB/s

Storage

16 GB eMMC 5.1

32 GB eMMC 5.1

32 GB eMMC 5.1

Power

7.5W | 15W

10W | 20W

PCIe

1 x1 + 1 x2 (PCIe Gen2)

1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2)

CSI Camera

Up to 5 cameras
(12 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

Up to 6 cameras
(12 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

Video Encode

1x 4K60 (H.265) | 3x 4K30 (H.265) | 4x 1080p60 (H.265)

Video Decode

2x 4K60 (H.265) | 7x 1080p60 (H.265) | 14x 1080p30 (H.265)

Display

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
1x 2 DSI (1.5Gbps/lane)

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
2 x4 DSI (1.5Gbps/lane)

Networking

10/100/1000 BASE-T Ethernet

10/100/1000 BASE-T Ethernet, WLAN

10/100/1000 BASE-T Ethernet

Mechanical

69.6 mm x 45 mm
260-pin SO-DIMM connector

87 mm x 50 mm
400-pin connector
